getByRoleUI5

getByRoleUI5 is a powerful locator that finds UI5 elements based on their control type and properties. Unlike standard Playwright locators that rely on the DOM structure, getByRoleUI5 communicates directly with the UI5 framework to find elements reliably.

Signature

page.getByRoleUI5(
  role: string,       // UI5 control type (e.g., 'Button', 'Table')
  properties?: object, // Control properties to match (e.g., { text: 'Save' })
  options?: {
    exact?: boolean   // Whether to use exact or partial matching
  }
): Locator

Parameters

Parameter	Type	Required	Description
role	string	✅	The UI5 control type as exposed by the framework (case-insensitive) Examples: Button, Input, Table, Dialog, IconTabFilter
properties	object	❌	A map of control properties to match Example: { text: 'Save' }, { icon: 'sap-icon://search' } Note: Currently supports matching on a single property; multiple property support coming soon
options.exact	boolean	❌	When true, property matching is case-sensitive and requires exact matches When false (default), matching is case-insensitive and allows partial matches

Basic Examples

Click a button by its text

await page.getByRoleUI5('Button', { text: 'Save' }).click();

Fill an input field by its label

await page.getByRoleUI5('Input', { label: 'First Name' }).fill('John');

Select a specific item from a dropdown

await page.getByRoleUI5('ComboBox', { name: 'Country' }).click();
await page.getByRoleUI5('Item', { text: 'Germany' }).click();

How It Works

getByRoleUI5 works by injecting JavaScript into the page that communicates directly with the UI5 framework. Instead of relying on the DOM structure, it uses UI5's own APIs to find controls based on their type and properties.

Using UI5 Inspector

To identify the correct control types and properties, install the UI5 Inspector browser extension:

UI5 Inspector for Chrome

This tool shows you the UI5 control hierarchy and all available properties for each control.

Example with UI5 Inspector

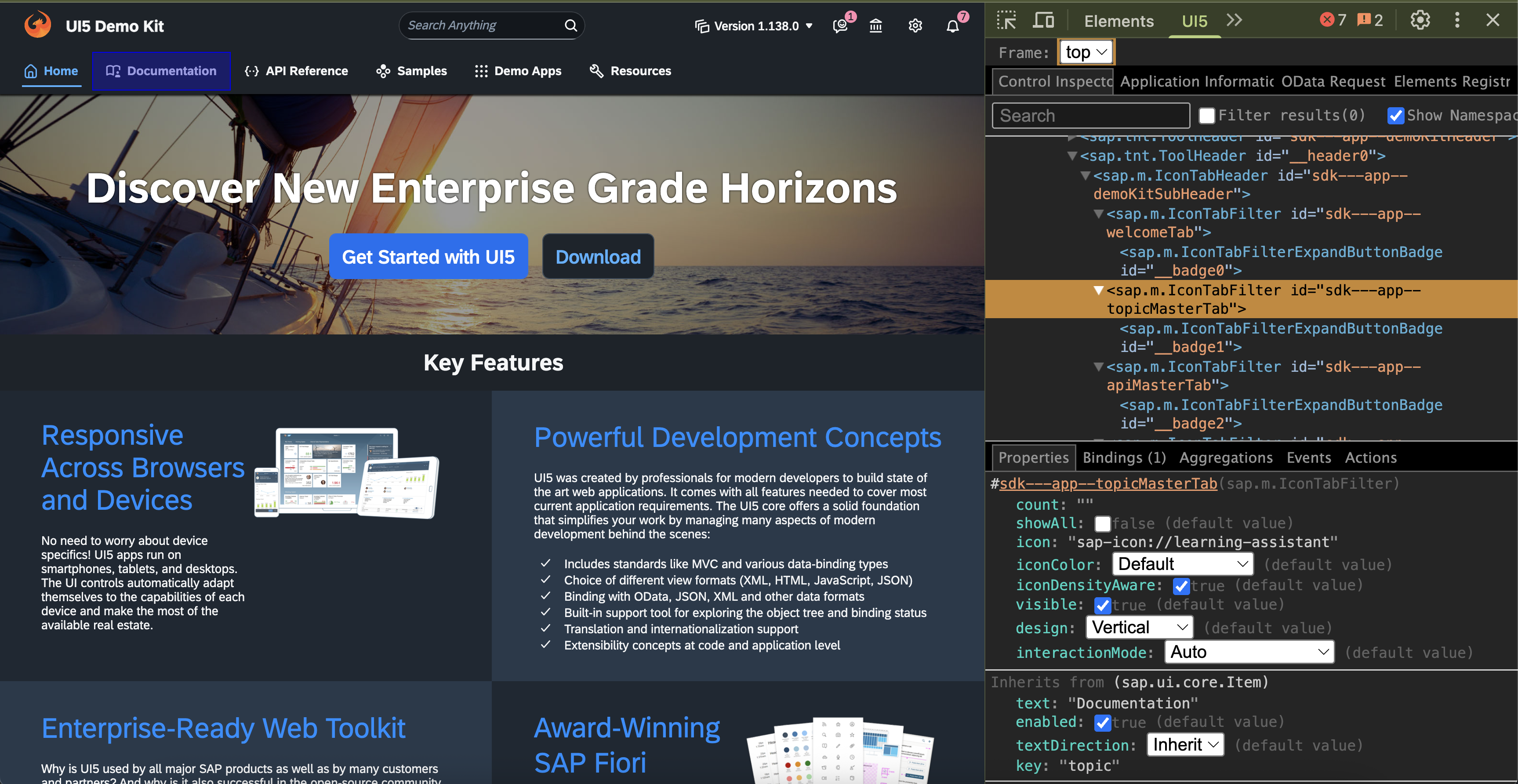

In this example from ui5.sap.com, we want to click on the "Documentation" tab (highlighted in blue). Using UI5 Inspector, we can see it's an IconTabFilter control with various properties.

Any of these locators will work:

// Find by icon property
await page.getByRoleUI5('IconTabFilter', { icon: 'sap-icon://learning-assistant' }).click();

// Find by text property
await page.getByRoleUI5('IconTabFilter', { text: 'Documentation' }).click();

// Find by key property
await page.getByRoleUI5('IconTabFilter', { key: 'topic' }).click();

// Find by index (if it's the second IconTabFilter)
await page.getByRoleUI5('IconTabFilter').nth(1).click();

Why Use getByRoleUI5?

Standard Playwright	Playwright-SAP with getByRoleUI5
❌ Relies on DOM structure that changes frequently in UI5 apps	✅ Uses stable UI5 control types and properties
❌ Breaks when UI5 generates new IDs	✅ Works regardless of generated IDs
❌ Requires complex CSS/XPath selectors	✅ Uses simple, readable control types and properties
❌ Difficult to maintain as app evolves	✅ Remains stable across app updates

Comparison with Standard Playwright

Standard Playwright (Brittle)

// Using standard Playwright locators - likely to break when UI changes
await page.locator('.sapMITBContent > .sapMITBTab:nth-child(2)').click();
// or
await page.locator('[id$="-documentationTab"]').click();

Playwright-SAP (Robust)

// Using getByRoleUI5 - stable across UI changes
await page.getByRoleUI5('IconTabFilter', { text: 'Documentation' }).click();

Best Practices

1. Prefer properties over indexes: Using .nth() should be a last resort as the order of elements might change
2. Use meaningful properties: Text, label, and title are usually more stable than technical IDs
3. Start with less specific matching: Begin with exact: false (default) and only use exact: true when necessary
4. Use UI5 Inspector: Always verify the control type and available properties with UI5 Inspector

See Also

• getByRoleSID - For WebGUI applications using Screen IDs
• locateSID - For direct access to SAP Screen IDs
